Forged Wheels
3SDM

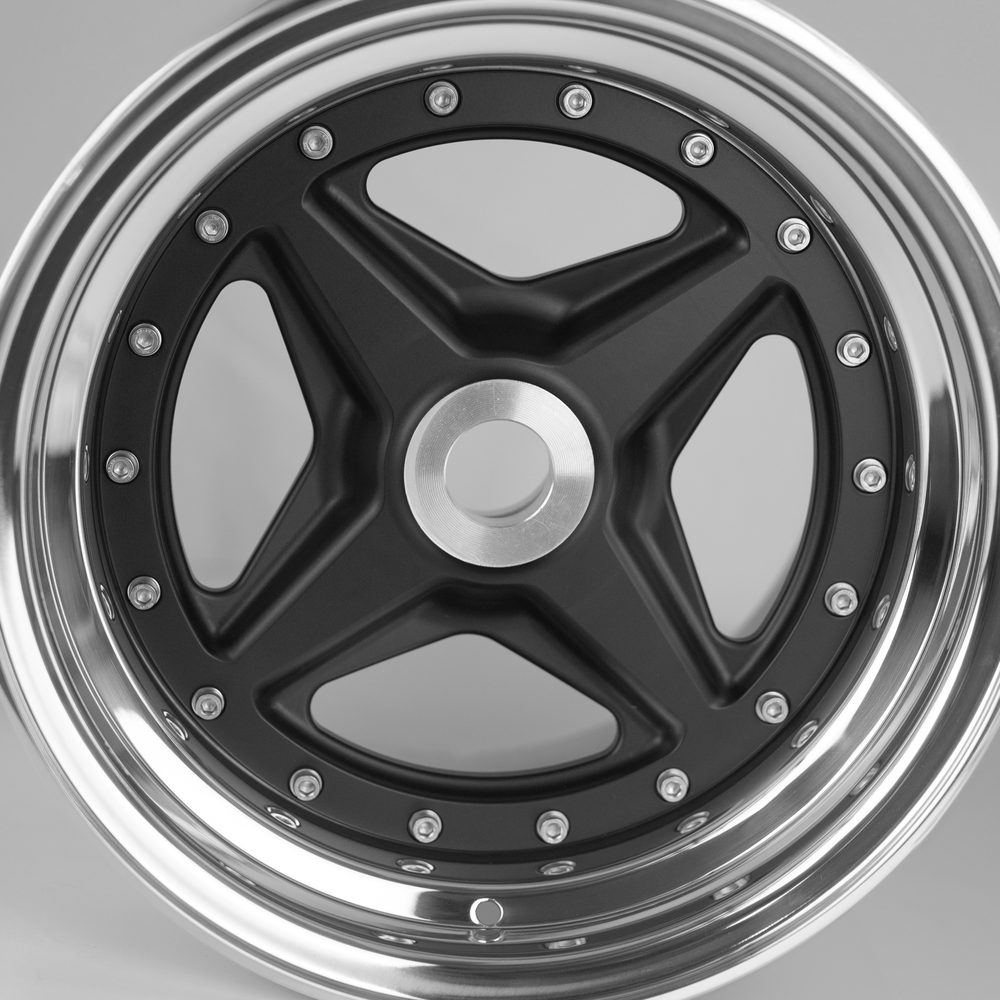

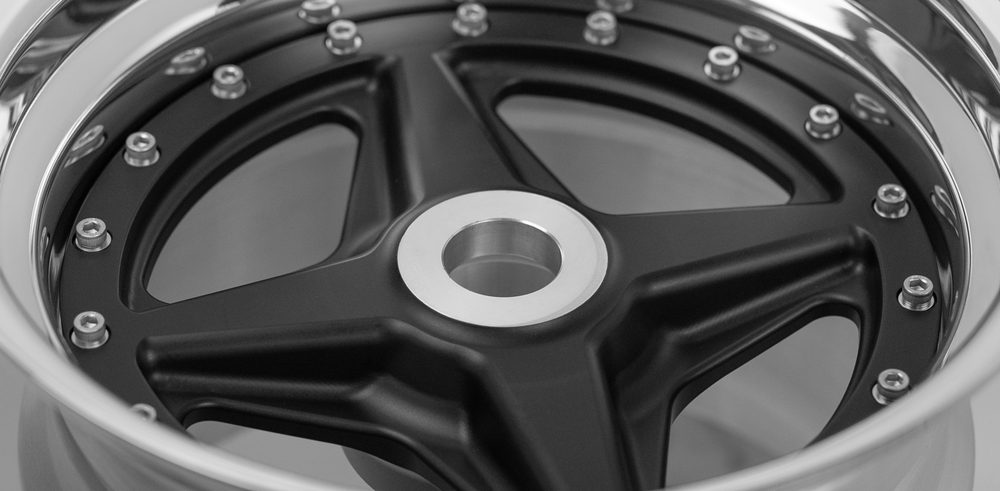

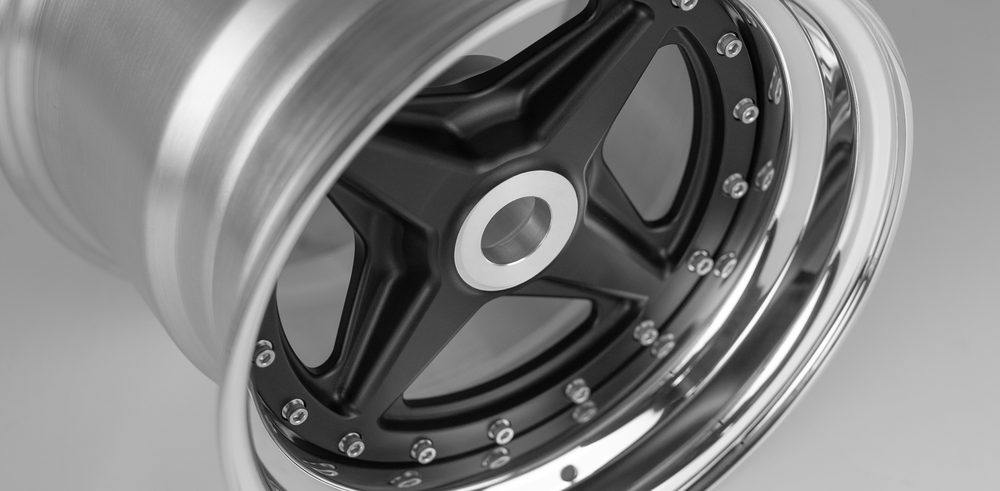

3.MC4 | FX3 Series
Can be configured in the following options:
| Available Sizes: | 13×6.0 to 13×18.0 15×6.0 to 15×18.0 |
| Fitment: | Centerlock |
| Construction: | 3pc modular FR and FX3(shown) |
| Profile: | Flat, Concave |
| Hardware: | Hidden, Exposed |
| Front Lip Options: | Euro step lip |
| Applications: | F1, F2, F3, Atlantic, Can AM, F5000, Hillclimb |
This 3pc modular wheel is based on the historic 4 spoke McLaren F1 wheel used on pretty much all pre-carbon tubbed race cars from the M2B right up to the M30. We also make a monoblock 1pc version for when maintaining period aesthetics are essential
1pc front wheel
1pc rear wheel
The centre, lip and barrel are all made from 6061-T6 aluminium making this wheel significantly stronger and more durable than period magnesium wheels whilst still keeping weight low. It should be noted that most of our competitors utilize 5000 series aluminium for their lips/barrels which is over 60% weaker.
Whilst this wheel is intended for period formula cars, we can make it for any race car that utilizes a 13″-15″ centerlock style wheel.
Back Pad (Optional)
Weight reduction back pad pocketing is available along with key wheel data markings. With CNC’d wheel details and authenticity number
Hardware
Our 3pc wheels have numerous options of assembly hardware such as:
Chrome, Black, Gold or Neo Chrome.
Titanium and painted hardware upgrade available.
CNC Logo
Most of our 3SDM Logo included as standard
Custom logos and caps are available on all white label wheels.
FEA testing
Our engineers use finite element analysis (FEA) software with our own proprietary loading scenarios to simulate wheel strength and fatigue life
All current standards can be adopted including JWL VIA, ISO, TUV and more.
